This 24V/28V LED Press to Test indicator features a dimming actuator, LED replaceable lamp, and an amber lens. This military grade panel mount indicator meets or exceeds military specification MIL-L-3661B with high quality black anodized aluminum housing.

The 24V indicator light is easy to install and compatible with a 24V electrical system. If you do not have an EFIS to connect to, this is a required indicator light if installing in a certified aircraft along with the ETX680-24-TSO battery. Detailed installation directions are located in the batteries manual but it is very simple. To install, connect red wire to a positive bus connection, connect the black wire to the EarthX battery.

The positive wire (red wire) of the LED should be connected to the electrical bus (24volt positive), typically to a fuse/breaker downstream of the master switch. Connect the negative of the LED (black wire) to the fault monitor wire of the battery.

STEPS:

1. Install the 24V LED Indicator light thru a hole in your control panel.
2. Connect the 3-pin plug from battery into the 3-pin plug from LED.
3. Connect the red wire to an electrical bus fuse/breaker (.25-1 AMP). Most of the time it is most convenient to connect to a fuse on the back side of the panel. If not, it could also be connected directly to the positive terminal of the battery with a ¼” ring lug connector.

SPECIFICATIONS

• Color: Amber
• Voltage: 24V
• Drill bit size: 15/32″

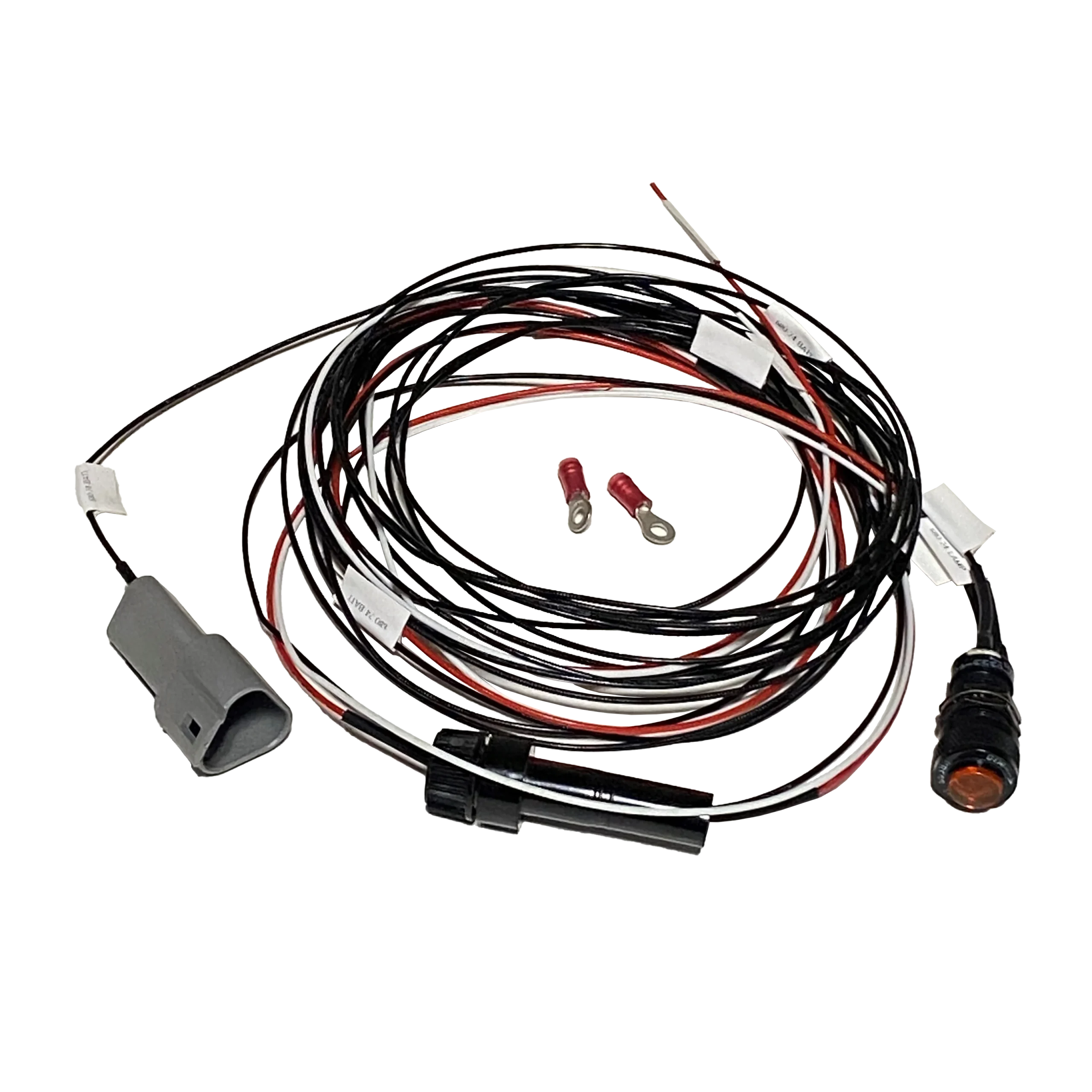

WHATS INCLUDED?

• Wire 20ga – 20ft in length
• Mounting: Nut and Washer
• Replaceable LED Lamp
• Fuse Holder with 1 Amp Fuse
